WAGO and EPLAN – Continuously Digital Engineering via eBUILD Free
The WAGO Group is an international, standard-setting supplier of electrical interconnection, automation and electronic interface products and solutions. This family-run company is the world market leader in spring pressure connection technology. Whether in industrial, railway, or energy technologies, in the marine and offshore sectors, or in building and lighting management, WAGO products and solutions provide safety and efficiency.
WAGO Productportfolio
Electrical Interconnections
WAGO offers spring connection technology for all types of electrical installations – from junction boxes, PCBs and all they up to control cabinets. Simple, secure, and maintenance-free use: These are the features that distinguish our connection technology.
Electronic Interface
The interface between the field and control level features a high degree of efficiency, ease of use and the seamless integration of our products! The tasks? Supplying, securing, metering and distribution of energy. Measuring, transforming, converting and transmitting signals and data. Communication between devices and controller units.
Automation Technology
WAGO’s open automation platform offers users the freedom they need for custom and adaptable solutions. Benefits include high levels of flexibility and designer freedom, continuous communication from the sensor level up to the cloud, and high reliability, even under extreme conditions.

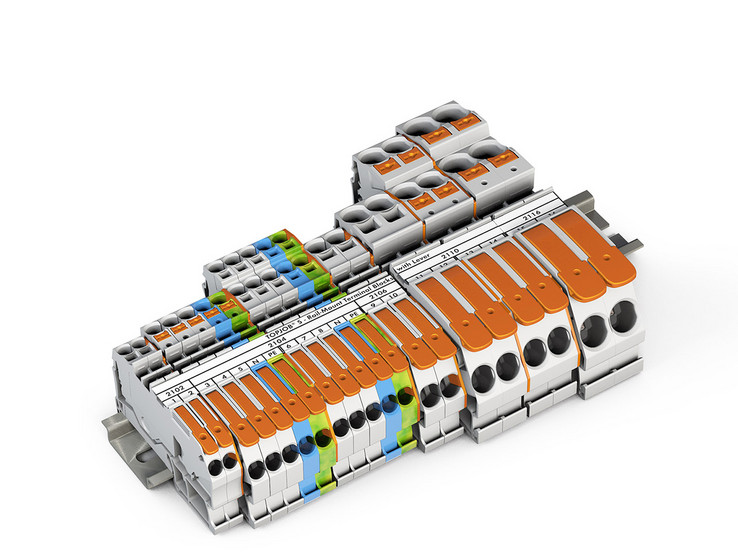

In various industrial applications and modern building installations, TOPJOB® S Rail-Mount Terminal Blocks offer more than just reliable electrical connections. With the TOPJOB® S Rail-Mount Terminal Block range with Push-in CAGE CLAMP® for conductor cross-sections from 0.14 to 25 mm2 (26–4 AWG), you can now choose from three actuation variants: lever, push-button or operating slot.
WAGO’s line of Pro 2 Power Supplies, with units ranging from 120 to 960 W, sets new industry communication and parameterization benchmarks. It also offers energy conversion efficiency of up to 96.3%. These new power supplies permit fieldbus connection via snap-on type communication modules and feature WAGO’s exclusive high-performance TopBoost and PowerBoost capabilities for maximum system uptime and lower hardware costs.

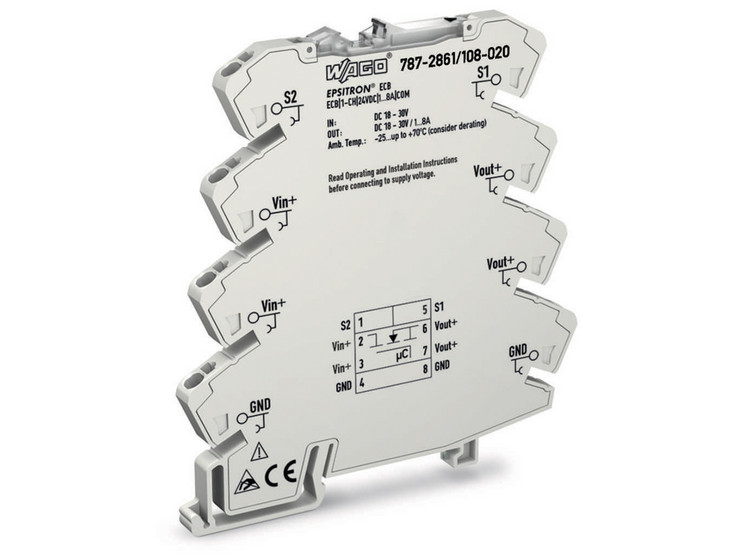

WAGO’s Electronic Circuit Breakers are the compact, precise solution for fusing DC voltage circuits.
The snap-on type Modbus RTU Communication Module connects the Pro 2 Power Supplies to a PLC, a control system or an IoT controller via Modbus RTU master.
eBUILD Projectdescription
In the following video, the WAGO Energy Supply Library is introduced to you as a user. This library is available to you in eBUILD Free within the ePULSE Community as well as in your customer organization. Using this library, you can configure a system solution for a power supply, including a power supply unit, secondary fuse, 24V and 0V terminal strips. The embedding of part data is done via Data Portal referencing. WAGO E-Shop referencing provides a simple way to simplify the ordering process.
