EPLAN Consulting

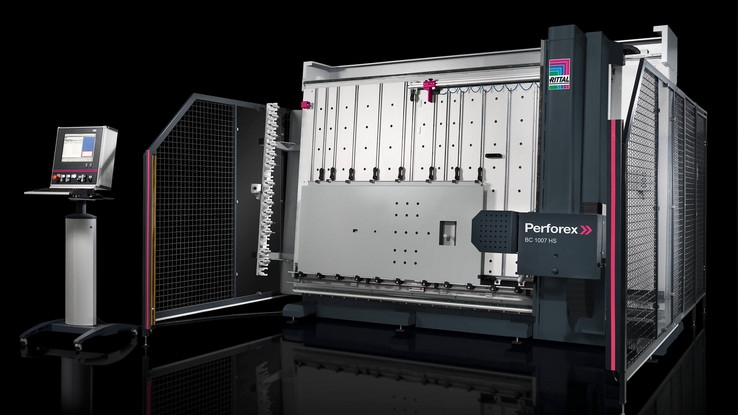

Commissioning EPLAN interface to Rittal Perforex MT
Setting up and using the EPLAN interface
Topics we discuss with you
- Basics of the EPLAN interface to your machine
- Creation of drilling patterns in the EPLAN parts database
- Use of openings and restricted areas in the layout space
- Carrying out an export to your machine
Procedure
- 1-day workshop
- Creation of scheme for EPLAN company setting for export to RiPanel Processing Center
- Dealing with the RiPanel Processing Center
- Teaching the basics of working with openings in EPLAN Pro Panel
- Creation of drilling patterns
- Documentation of the EPLAN interface
- Practical test of the EPLAN interface
Your results
- Acceptance of the EPLAN interface for productive use of the Rittal Perforex MT
- The user is able to adapt the EPLAN interface as required
- The user is familiar with the creation and handling of drilling patterns
- Documentation of the EPLAN interface (DE /EN)
Requirements
- Your Rittal Perforex MT is ready for operation
- EPLAN Pro Panel is already installed and ready for use
- The license for EPLAN Pro Panel Professional is available and ready for use
Tip
EPLAN recommends further consulting support for the use of EPLAN Pro Panel.
Tip
EPLAN recommends further consulting support for the use of EPLAN Pro Panel.
Are you interested in our consulting services?
Our experts from EPLAN Consulting are at your disposal.
